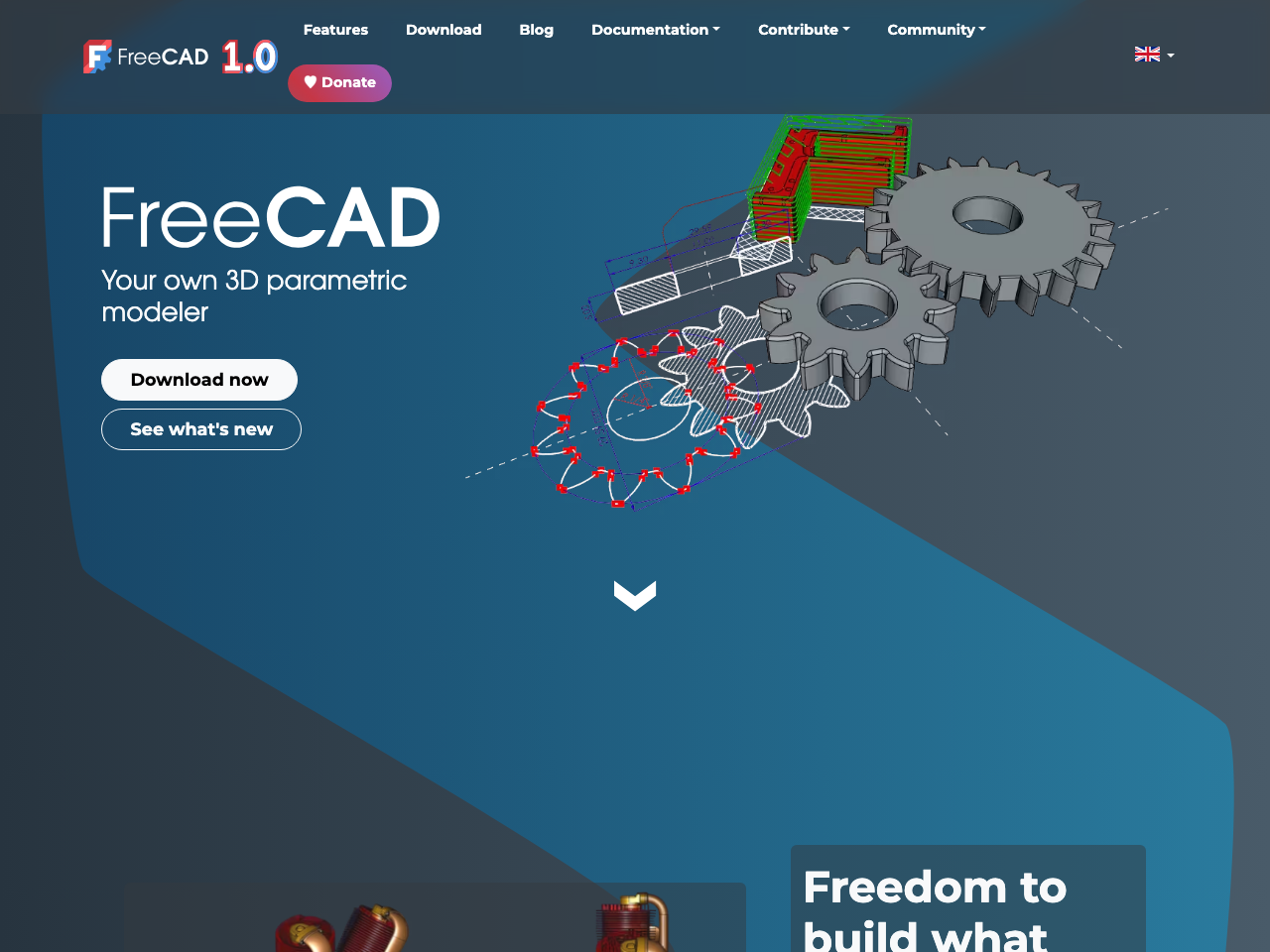

FreeCAD

FreeCAD is a free and open-source, multiplatform parametric 3D modeler for various engineering and design applications.

Description

FreeCAD is an open-source, parametric 3D modeler designed for creating real-life objects of any size. Its parametric modeling allows for easy design modifications by altering parameters within the model's history. It supports 2D sketching as a basis for 3D modeling and offers tools for adjusting dimensions and extracting design details for production-ready drawings. FreeCAD is multiplatform (Windows, Mac, Linux), highly customizable, and extensible, supporting numerous open file formats for seamless workflow integration. It caters to various uses, from product design and mechanical engineering to architecture, and welcomes contributions from the community.

Features

FreeCAD is an open-source, parametric 3D modeler supporting 2D sketching and 3D modeling. It allows for the creation of production-ready drawings from 3D models. The software is multiplatform, highly customizable, and extensible, with support for many open file formats (STEP, IGES, STL, SVG, DXF, OBJ, IFC, DAE, and more). It features modern Finite Element Analysis (FEA) tools, experimental CFD capabilities, dedicated BIM, Geodata, and CAM/CNC workbenches, and a robot simulation module. Its open-source nature enables community contributions and continuous development.

Benefits

FreeCAD offers users the freedom to design without proprietary software limitations. Its open-source nature fosters community collaboration and continuous improvement. The parametric modeling ensures efficient design iteration and modification. The software's multiplatform compatibility and broad file format support enable easy integration into existing workflows. A wide array of features, including FEA, CFD, BIM, and CAM/CNC workbenches, make it a versatile tool for various engineering disciplines. The availability of various workbenches makes it adaptable to diverse needs.

Links

• Home: https://www.freecad.org/
